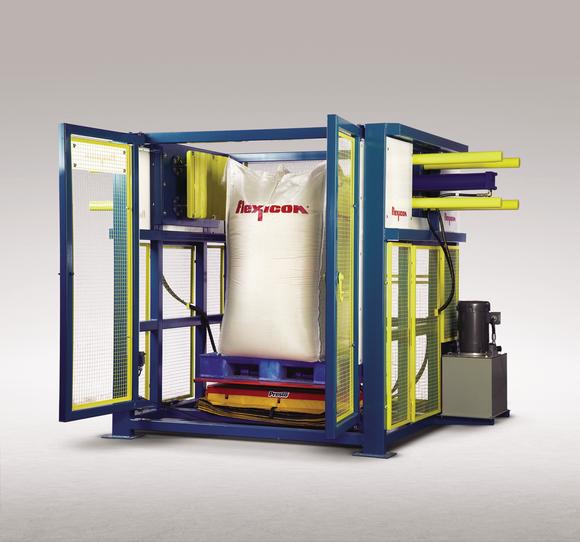

Flexicon (Europe) Ltd has developed a new Hydraulic Bulk Bag Conditioner.
Flexicon (Europe) Ltd has developed a new Hydraulic Bulk Bag Conditioner. The system loosens bulk solid material that has solidified during storage and shipment, enabling bulk bag unloaders to discharge such material through bag spouts. It is specially intended for bulk bags containing hygroscopic chemicals, certain types of spice blends, heat sensitive products and other materials prone to solidifying to the point at which pneumatically actuated flow promotion accessories integral to bulk bag dischargers are inefficient or completely ineffective.
The conditioner features two hydraulic rams with specially contoured end plates to press opposing sides of bulk bags. An optional, hydraulically actuated, variable height turntable allows in-frame bag rotation and conditioning of bulk bags at varying heights. The number and pressure of hydraulic ram actuations, the height of the turntable and the number of 908 rotations are user adjustable.
The system controller and hydraulic pump can be mounted on the exterior of the safety cage or used remotely. The conditioner is fully enclosed on all four sides for operator safety and includes full height doors that are interlocked to prevent operation of the system when the doors are open.
Available as a standalone unit or integral component of a bulk bag discharger, the unit measures 2210mm(h) x 3378mm(w) x 1981mm(d). It accommodates bulk bags of all popular sizes and requires only an electrical power connection for operation.
